This article gives an overview of the mechanisms by which self-healing occurs, an insight into the trade-offs between different mechanisms, and the key applications adopting self-healing materials, including a look to the long-term future of these materials.
Once considered pure science fiction, self-healing materials have generated major hype by promising structures that repair themselves like living tissue. For years, the idea felt more like a futuristic fantasy than real science. Today, however, researchers are developing polymers, coatings, and composites that can mend cracks or damage automatically. While still emerging, these early breakthroughs suggest that the sci-fi dream of self-repairing materials is steadily becoming reality.
IDTechEx has published a new report, "Self-Healing Materials 2025-2035: Technologies, Applications & Players," delivering an in-depth evaluation of the market, including insights on technological advances, emerging opportunities, and commercial maturity. The report presents an independent, objective analysis along with a forward-looking perspective on the future of the self-healing materials landscape.
Routes to self-healing in materials are highly varied, reflecting different mechanisms and levels of autonomy. Extrinsic healing relies on added components, such as microcapsules or vascular networks, that release healing agents when damage occurs. In contrast, intrinsic healing stems from the material's own reversible chemistries or dynamic bonds, allowing it to repair without external additives. These approaches also differ by degree of autonomy, ranging from systems that need external triggers or stimuli to those capable of fully autonomous, repeatable self-repair.

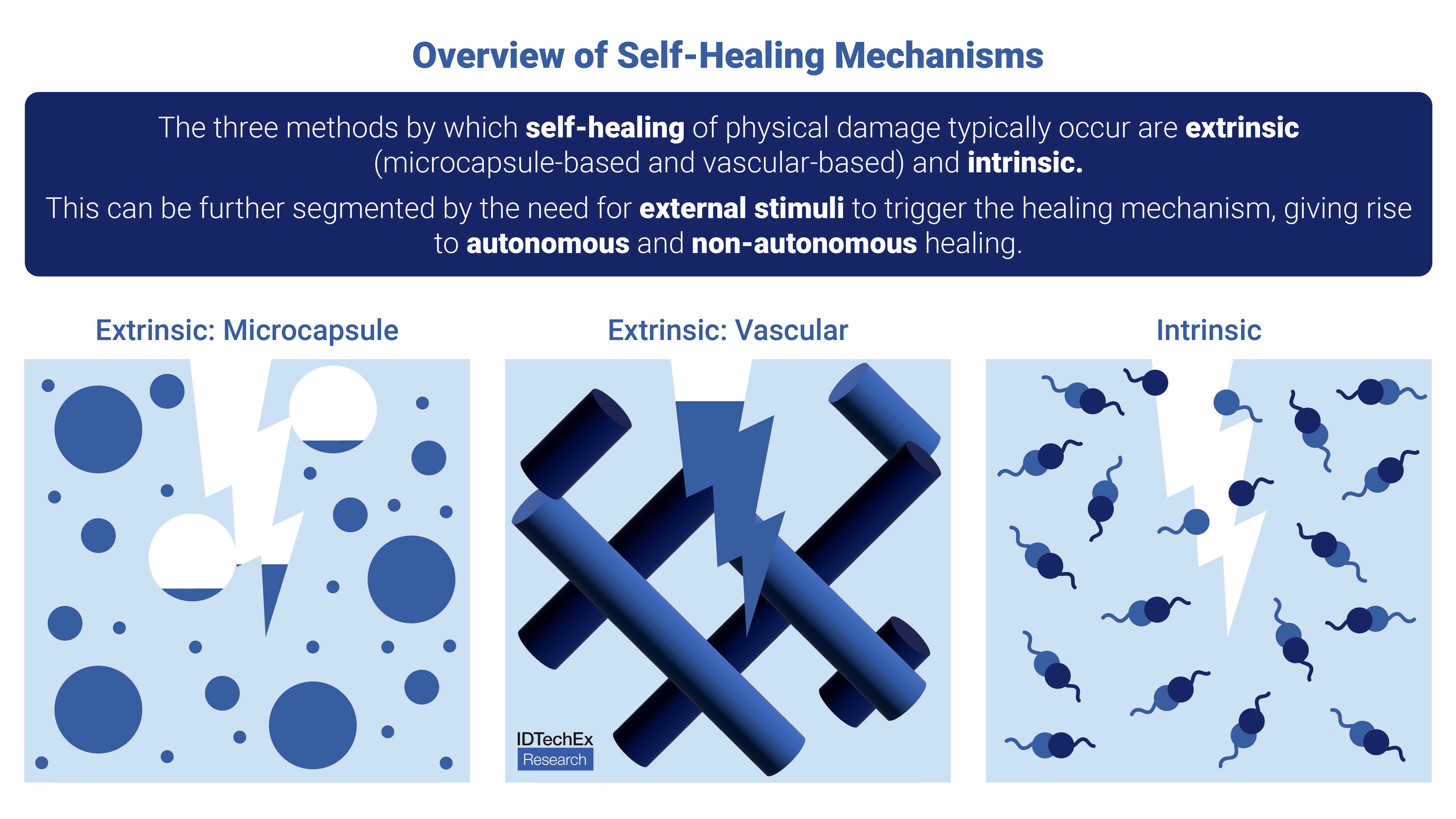

An overview of the mechanisms for self-healing materials. Source: IDTechEx, "Self-Healing Materials 2025-2035: Technologies, Applications & Players"
Extrinsic Self-Healing Mechanisms
Extrinsic self-healing refers to the incorporation of embedded artifacts within the host material, that will provide healing agents in response to a damage event, or an external stimulus after the damage event. A leading method involves embedding microcapsules in the host material, which when ruptured by the damage event, release reactive material into the crack, while another method involves the use of a vascular network. Beyond damage, external stimuli can include heat, specific wavelength of light or even electromagnetic radiation.
This method of self-healing offers several advantages such as controlled delivery of the reactants to the damage site, while a diverse range of host materials can be used that do not inherently have self-healing properties. Difficulties surround the material considerations for the microcapsule shell and vascular walls to avoid unwanted rupture, unintended alterations to optical and mechanical properties of the host material and difficulty embedding in thin materials such as coatings and paints. IDTechEx provides a detailed analysis of extrinsic self-healing mechanisms including material considerations, key application areas and technological pain points.
Intrinsic Self-Healing Mechanisms
Intrinsic self-healing means that the host material already possesses this healing property, such as creep, or the material will react with air/water to produce crack filler material. This category can be extended to include non-automatic forms, such as reversible bonds, that require an external trigger such as applying heat, electric current, UV light, or other. Repeated healing can occur at the same damage site through reversible bonds, while intrinsic self-healing can increase lifetime, safety and durability of materials. The primary concerns around intrinsic healing relate to the scale of damage that can be healed, as well as research to increase the speed and efficiency of the healing reaction.
Three of the most promising methods for intrinsic self-healing are the Diels-Alder (DA) reaction, supramolecular bonding and ionomers. The DA reaction is an organic chemistry reaction that leads to thermally reversible and relatively strong covalent bonding, offering the benefits of tuneability, versatility and an obvious trigger. Reversible bond formation is an important pillar of intrinsic self-healing, and includes electrostatic interactions, metal-ligand coordination, host-guest complexation, hydrogen bonding and dynamic covalent (DC) bonding, however the current cost associated with these materials could be prohibitive. Ionomers are an extremely versatile family of polymeric material, with utilisation across a wide range of industries. The healing mechanism here is non-autonomous and requires activation, typically the application of heat.
The Holy Grail of Self-Healing Mechanisms
The ultimate goal for self-healing mechanisms is specially designed materials in or on the host material that automatically and repeatedly mend cracks and/or chemical damage, without the need for external influence. Several of the most commonly available self-healing products, such as cutting mats and paint protection film, rely on intrinsic self-healing mechanisms. Ambient conditions are usually enough to trigger the healing reaction.
Beyond this, emerging applications such as soft robotics and self-healing sensors will leverage reversible chemical bonds for the healing mechanism with some external stimuli required. Long-term understanding of the viability of the healing mechanism, including end-of-life is required for certain applications but intrinsic self-healing offers a compelling use case for most applications, with the highest degree of autonomy compared to other mechanisms.
"Self-Healing Materials 2025-2035: Technologies, Applications & Players" delivers an in-depth assessment of this rapidly developing field. Drawing on its expertise in advanced materials, IDTechEx offers an impartial analysis that covers technology landscapes, market expectations, and evaluations of leading players. The report provides valuable clarity on a sector that is promising yet still in its early stages, helping readers navigate emerging opportunities and challenges.
For more information on this report, including downloadable sample pages, please visit www.IDTechEx.com/SelfHealingMats, or for the full portfolio of advanced materials research available from IDTechEx, see www.IDTechEx.com/Research/AM.
